Solar Airport Lighting
>
|
|
| Place of Origin | China |
| Brand Name | Annhung |
| Certification | CE, RoHS |
| Model Number | AH-SA-A |

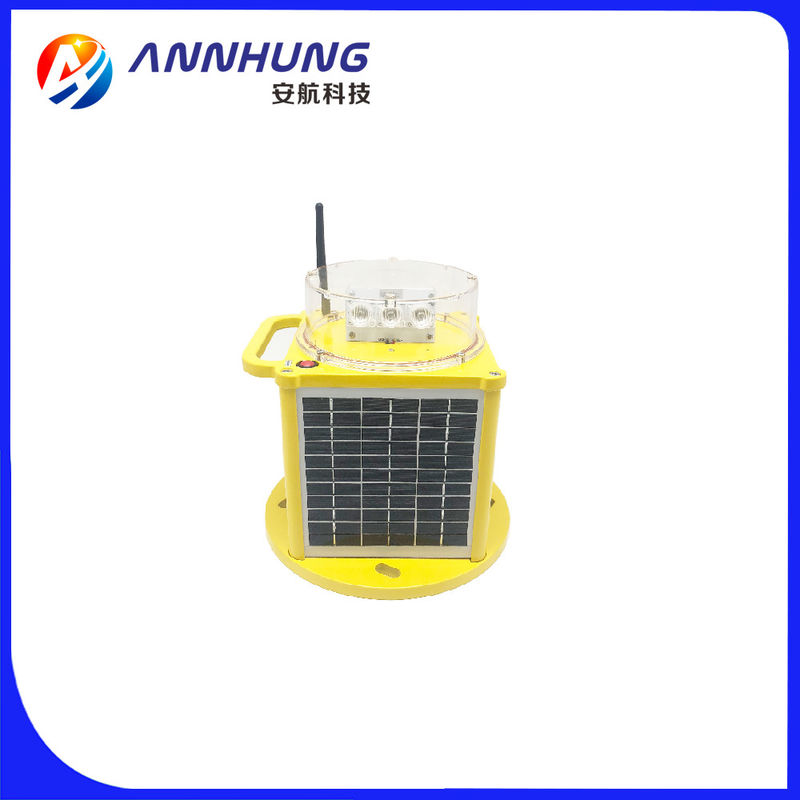

Solar Portable Airfield Light Steady 3Km Handheld Remote Controller IP68
Application
Emergency operations, Helipads, Touchdown and Lift-off area (TLOF), Final Approach and Take-off area (FATO), Taxiway lighting, Runway edge lighting – (ICAO Annex 14), Portable or expedited airfield lighting,
Threshold lighting and obstruction lighting.
1. Product Name: Serial Solar Airfield Light
2. Mode: AH-SA-A
3. Standard:ICAO Annex 14
4. Available Colors:White, Blue,Red/Green, Yellow/White, Green, Red, White/White
5. Wording Mode :Steady(Flashing mode is optional)
6. Light source: LED
7. Service life of LED: ≥100,000hours
8. Operating voltage:12V
9. Operation Mode:Controlled by AH-HP-RC contoller
10. Autonomy(without sunlight):at least 5 days(Option 20days)
| (SPECIFICATIONS | AH-SA-A Serial Solar Airfield Light |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | White, Blue,Red/Green, Yellow/White, Green, Red, White/White |
| Flash Characteristics | Steady(Flashing mode is optional) |
| Operation Mode | Controlled by AH-HP-RC contoller |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 12V |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon |
| Output(watts) | 3*4=12W |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery |
| Nominal Voltage (V) | 11.1 |
| Battery Service Life | Average 5 years |
| Physical Characteristics | |
| Lamb Body Material | Aluminum Alloy |
| Base Material | Powder-coated Die-casting aluminum |
| Installation Size | 200×200×M10 |
| Overall Size (mm) | 250×250×250 |
| Weight(kg) | 5 |
| Product Life Expectancy | Average 10 years |
| Environmental Factors | |
Ambient Temperature(℃) -55℃~+70℃ | -55~70 |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| ICAO | Annex 14
|
| Optional | |
External battery charger
| |
NVG - compatible infrared (IR) LED
| |
| Pilot to ground remote control(VHF radio control) |
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
Download datasheet of Company Profile : Download Shenzhen Anhang Company Profile.pdf
