Solar Marine Lantern
>
|
|
| Place of Origin | China |
| Brand Name | Annhung |
| Certification | IALA, CE, ISO9001 |
| Model Number | AH-LS-C |

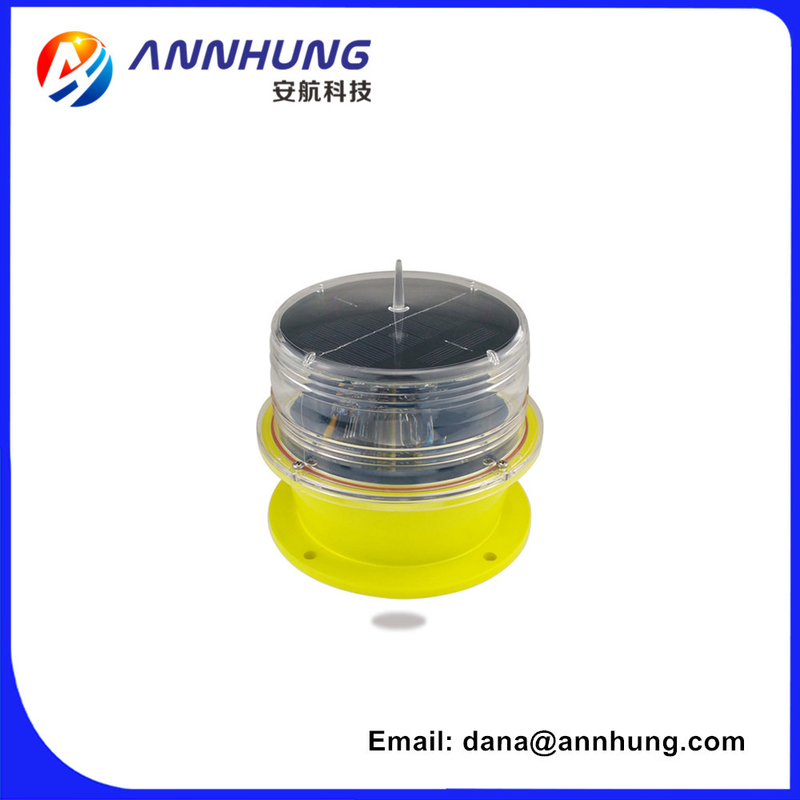

Factory Supply IALA Standard Solar Marine Lanterns 1 - 3 NM
This LED Marine Lanterns is completely self-contained lantern, adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply.
Application
AH-LS-C Solar Marine Lantern is used on buoy, light house and any other off shore site.
Compliance
IALA E-200-1
Features
Electrical
Based on LED technology, and its color complies to IALA Recommendations E-200-1.
LED technology reduces maintenance time & costs
Physical
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
PC housing,UV resistance, shockproof and corrosion proof.
Bird deterrent spike
Powder coated die casting aluminum base
Built-in mono-crystalline silicon solar panel, conversion efficiency is better than poly-crystalline silicon
System design
Built-in photocell for day/night operation(dusk to dawn operation)
Flashing rate: 20FPM(Other flashes is optional)
ON/OFF button interface located under base
Optional
External battery charger
Flashing rate optional
IR Program
GPS sync flashing
IALA 366 light characters adjustable
| SPECIFICATIONS | AH-LS-C LED Solar Powered Marine Lanterns |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red, Green, Yellow, White, Blue |
| Visible Range(NM) | 1-3 (AT@0.74) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 7 |
| Flash Characteristics | FL3S(0.2,2.8) (others are optional) |
| Operation Mode | Dusk-to-dawn Automatically (Built-in photocell) |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 3.7Vdc |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Mono-crystalline Silicon |
| Output(watts) | 1.8 |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery |
| Nominal Voltage (V) | 3.7 |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | Steady: 60 Flashing: 150(duty cycle:12%) |
| Physical Characteristics | |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting(mm) |
140×140-4×M6
|
| Dimension(mm) | 162×162×160 |
| Weight(kg) | 1 |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| IALA | Signal colors complying to IALA E-200-1 |
Product datasheet download: download AH-LS-C LED Solar Powered Marine Lanterns...
