| Place of Origin | Guangdong, China |
| Brand Name | Anhang |
| Certification | ICAO |
| Model Number | AH-SA-C |

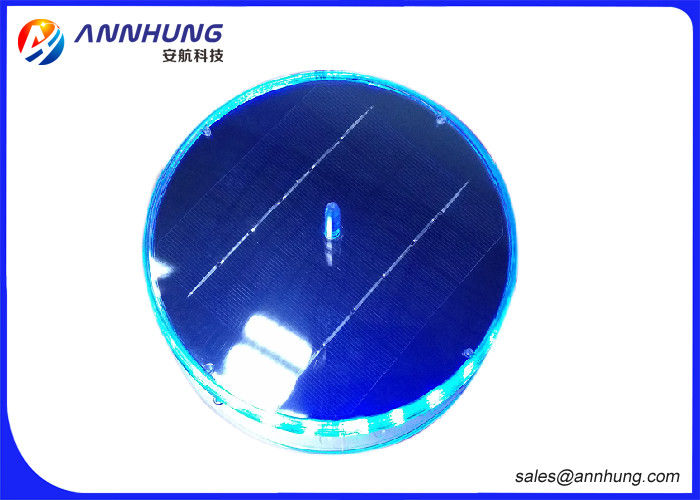

Solar Airport Lighting Solar Powered Portable Airfield Final Approach and Take- off area ( FATO) lighting
Advantage
1.International advanced solar panel reaching more than 10 years service life.
2. Easy to install.there is no need for large number of personnel to install.
3. Comprehensive protection in short circuit protection, over-voltage, floating charge and over temperature.
4. Built-in Solar Panel.
5. Self-contained and low maintenance: all components are incorporated within a compact, stand-alone unit.
6. Strong anticorrosion, Rain and Snow, seismic resistance and UV protection.
7. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
8. Clean, renewable, green and reliable energy source.
9. Dusk-to-dawn operation: Built-in photocell inside light can let light work at night and close during the day automatically.
10. More than 5 days autonomy.
11. Recyclable batteries with the lightest environmental.
Function
1. Optional wireless Switch control. remote control distance 3km, built in antenna.
2. Push button interface for local ON/OFF control. Toggle switch interface for steady-burning/flashing working mode.
3. Optional Battery Charge port: 100~240VAC
4. Optional NVG-compatible infrared (IR) LEDs
Application
Emergency operations, Helipads, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting – (ICAO Annex 14), Portable or expedited airfield lighting, Threshold lighting and obstruction lighting
Production Description
Main parameter
| 1.Mode: | AH-LA/ C |
| 2.Light intensity: | ≥32cd |
| 3.Working mode: | Steady-burning mode or Flash mode |
| 4.Light source: | LED,100,000hours service life |
| 5.Solar panel: | monocrystalline silicon |
| 6. Material: | -Housing: Polycarbonate -Base: die casting aluminum |
| 7.Autonomy(without sunlight): | at least 5 days(Option 20days) |
| 8.Battery: | lithium ion battery, 3. 7V 10AH |
| 9.Overall Size(mm): | Φ220 by 233 |
| 10.Installation Size(mm): | Φ190 by M10 |
| 11.Weight: | 2Kg |
| 12.Emitting Color: | Red, green, white, yellow/ white,yellow/ white, yellow/ white, red/ white( Customized) |
| 13.Ambient Temperature: | -40℃~+60℃ |
| 14.Wind load: | 80m/s |
| 15. Protection Standard: | IP68 |
| 16. Optional: | charging port,remote control,NVGcompatible infrared (IR) LEDs |
