| Place of Origin | Shenzhen, China |
| Brand Name | ANNHUNG |
| Certification | ICAO |
| Model Number | AH-LS/C |
Detail Description:

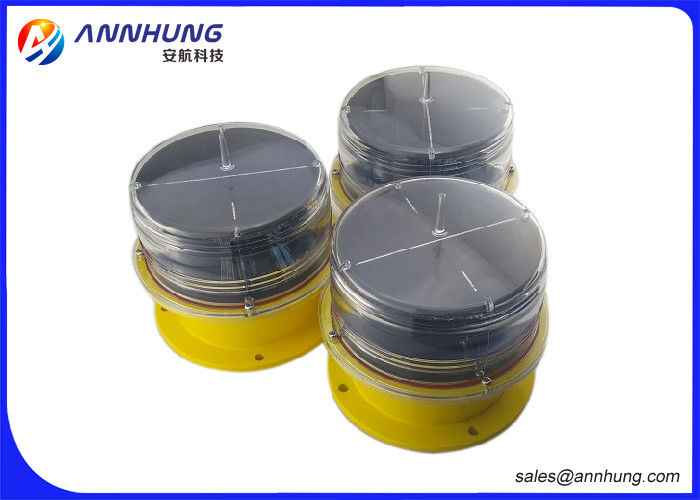

1.Product Name: Marine Lanterns
2.Mode: AH-LS/C
3.Standard:IALA
4.Light intensity:1cd(1NM),5cd(2NM)
5.Working mode:Flashing mode or Steady-burning mode
6.Light source: LED
7.Service life of LED: ≥100,000hours
8.Operating voltage: DC3.2V, recyclable batteries with the lightest environmental and long life.
9.Control Way: photocell. Light can work at night automatically by photocell.
10.Autonomy(without sunlight):at least 5 days(Option 20 days)
Specifications:
| SPECIFICATIONS | LED Solar Powered Marine Lantern |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Yellow, Green, White and Red |
| Intensity(cd) | ≥ 32.5cd(Flash mode) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | >10 |
| Reflector Type | Fresnel Lens |
| Flash Characteristics | Flashing mode or Steady-burning |
| Operation Mode | Dusk-to-dawn Automatically as standard. 24hours operation as option. |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC12V |
| Power(W) | 1 |
| Circuit Protection | Integrated |
| Temperature Range(℃) | -55~70 |
| Physical Characteristics | |
| Body Material | Polycarbonate |
| Base Material | Die-casting aluminum |
| Mounting | Φ140 by M6 |
| Height(mm) | 136 |
| Width(mm) | 136 |
| Depth(mm) | 220 |
| Mass(kg) | 1 |
| Product Life Expectancy | 5 years plus |
| Environmental Factors | |
| Humidity | 10%-95% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| ICAO |
Low-intensity Solar-Powered Aviation Obstruction Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3 |
| FAA | Low-intensity Type A or Type B FAA L-810 |
