| Place of Origin | Shenzhen, China |
| Brand Name | ANNHUNG |
| Certification | ICAO |
| Model Number | AH-LS/L |

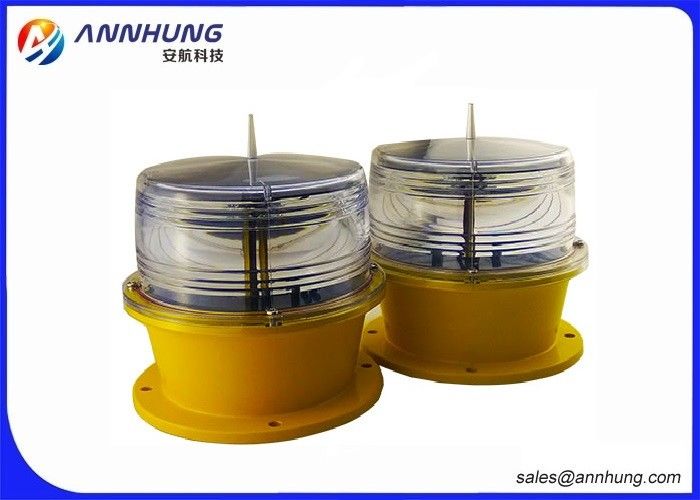

RED Low intensity LED Solar Powered Aviation Light
Detail Description:
AH-LS/L Low-intensity Single Solar-Powered Aviation Light has one photocell. It can work alone automatically at night by photocell and close during the day.
Application field:
AH-LS/L Low-intensity Solar-Powered Aviation Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
Specifications:
| SPECIFICATIONS | LS/L Solar Powered Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red, Green, Yellow (Amber), Blue or White |
| Intensity(cd) | ≥ 32.5cd(Flash mode) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | >10 |
| Reflector Type | Fresnel Lens |
| Flash Characteristics | Flashing mode or Steady-burning |
| Operation Mode | Dusk-to-dawn Automatically as standard. 24hours operation as option. |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC3.2V, recyclable batteries with the lightest environmental and long life |
| Power(W) | 1 |
| Circuit Protection | Integrated |
| Temperature Range(℃) | -40~60 |
| Physical Characteristics | |
| Body Material | Polycarbonate |
| Base Material | Die-casting aluminum |
| Mounting | Φ140 by M6 |
| Height(mm) | 162 |
| Width(mm) | 162 |
| Depth(mm) | 160 |
| Mass(kg) | 1 |
| Product Life Expectancy | 5 years plus |
| Environmental Factors | |
| Humidity | 10%-95% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| ICAO |
Low-intensity Solar-Powered Aviation Obstruction Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3 |
| FAA | Low-intensity Type A or Type B FAA L-810 |
