| Place of Origin | China |
| Brand Name | ANNHUNG |
| Certification | CE |
| Model Number | AH-ML-S7 |
Marine lantern
Solar marine light
Solar powered marine beacon light
Solar beacon marine light
CREE Ultra high intensity LED is used as light source which make performance better.
GSM Monitoring as optional function, when fault happens, it will send out text message automatically.
Electrical
Based on LED technology, and its color complies to IALA Recommendations E-200-1.
LED technology reduces maintenance time & costs
Physical
PC housing, UV resistance, shockproof and corrosion proof.
Bird deterrent spike
Powder coated die casting aluminum base
System design
Built-in photocell for day/night operation(dusk to dawn)
ON/OFF button interface located under base
Optional
Charging port & External battery charger
366 IALA flash characteristics adjustable
Infrared Programmer for flashing rate setting
Application

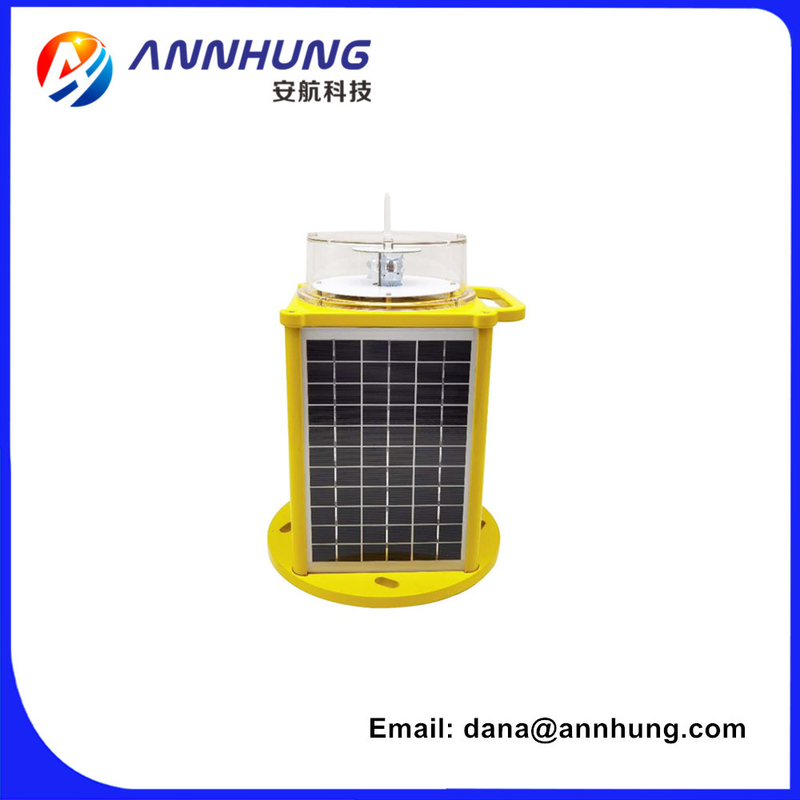

AH-ML-S7 Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
FL3S(0.2,2.8) |
| Operation Mode |
Dusk-to-dawn Automatically (Built-in photocell) |
| LED Life Experience(hours) | >100,000 |
| Battery type | Lithium ion battery |
| Solar Module Type | Mono crystalline Silicon |
| Mounting |
200×200×Φ12 |
|
Dimension(mm) |
250×250×370 |
|
Weight(kg) |
5.5 |
|
Ambient Temperature(℃) |
-55~70 |
| Humidity |
0~100% |
| Wind Speed |
80m/s |
| Waterproof | IP68 |
|
Options Available |
366 IALA flash characteristics adjustable |
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
