| Place of Origin | Shenzhen, China |
| Brand Name | ANNHUNG |
| Certification | IALA |
| Model Number | AH-LS/C |

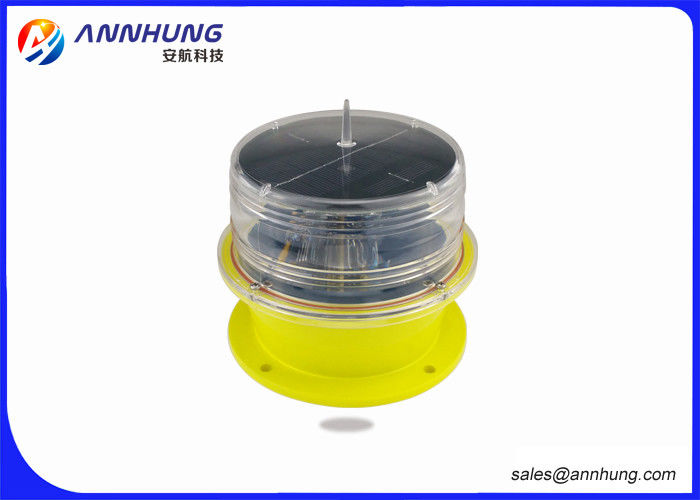

AH-LS/C LED Marine Lantern 2nm remote control charging port red green
AH-LS/C navigation light buoys applying to ocean buoy, river buoy, aquaculture, offshore oil platform, port or other fixing and floating aids to naviation.
Application area
Advantages
1. IP68 protection standard, Full sealing structure.
2. Recyclable batteries with the lightest environmental.
3. At least 5 days autonomy without sunshine (Option 20days).
4. Dusk-to-dawn operation: photocell. Light can work at night automatically by photocell.
5. Clean, renewable, green and reliable energy source.
6. Strong corrosion resistance,Rain and Snow,Shock and Vibrations protection and UV protection.
7. International-advanced cold and special LED with low power consumption, high brightness and service life of light source reaching 100000hours.
8. Comprehensive protection in short-voltage,over-voltage,floating charge and temperature.
9. Bird spike against bird drop.
10. Based on LED technology and its color comply to IALA Recommendations E-200-1.
11. Up to 2 Nautical Miles (Tc =0.74)
| SPECIFICATIONS | AH-LS/C LED Solar Marine Lantern |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red, Green, White, Yellow |
| Visible Range(NM) | AT@0.74: 1-2 |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 7 |
| Flash Characteristics | Steady & Flashing adjustable |
| Operation Mode | Dusk-to-dawn Automatically(Built-in photocell) |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 3.7 |
| Power(W) | 0.55 |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Monocrystalline Silicon |
| Output(watts) | 0.55 |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery |
| Battery Capacity (Ah) | |
| Nominal Voltage (V) | 3.7 |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | Steady: 60 |
| Flashing: 150 | |
| Physical Characteristics | |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting | 140×140×M6 |
| Dimension(mm) | 162×162×160 |
| Weight(kg) | 1 |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| IALA | Singal colors complicant to IALA E-200-1 |
| Options Available | Charging port |
| Remote Control | |
| Flashing rate | |
| Auto/Manual toggle switch |
